Pressing Technology

Presses and press systems are used for mechanical extraction of vegetable oils from oil seeds. Apart from oil yield, reliability and availability of the equipment play an important role and have a high impact on press profitability.

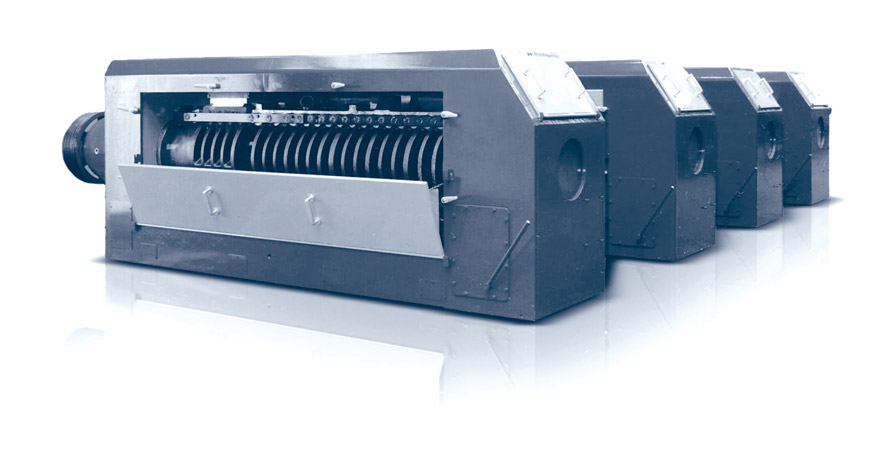

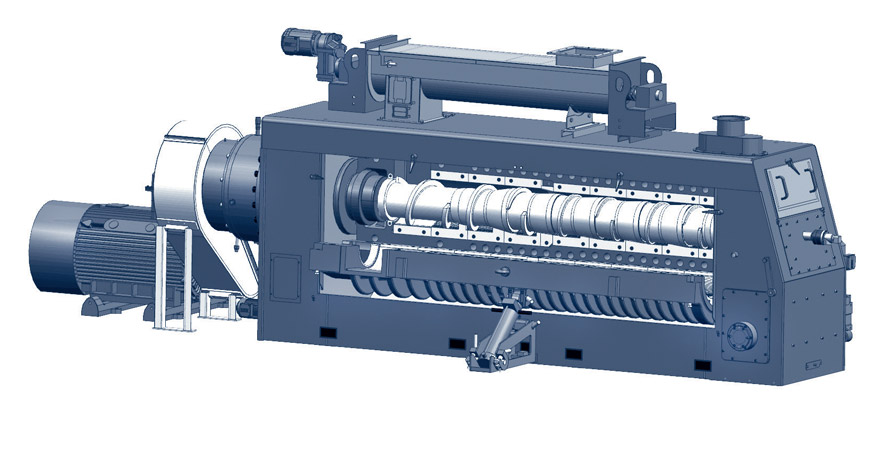

Screw Presses SP 220-340 F/P

Thanks to more than 160 years of experience in mechanical engineering and pressing applications, a profitable operation at highest standards is guaranteed.

Pressing Technology

Features

  • Longest service life of wear parts (reduced downtimes)
  • Alternative drive systems (belt, direct, and helical)
  • Online press monitoring
  • Optional cake-breaking device
  • Shear pin and safety coupling solutions to separate the drive from the press –
  • most advanced hard facing technology
  • Simple design for easy operation and optimum access for maintenance
  • Self-centering, free-floating shaft
Type SP160 SP220P SP280P SP340P SP220F SP280F SP340F SP340XP
Application Full-press Pre-press Pre-press Pre-press Full-press Full-press Full-press Pre-press
Capacity (t/d) 10-20 200-275 300-450 450-750 25-30 60-75 100-150 700-1000
Residual oil content (%) 5-9 17-21 17-21 17-21 5-9 5-9 5-9 17-21
Drive size (kW) 45-55 160-250 250-400 400-600 75-110 160-250 250-315 630-1000
Cage diameter (mm) 250/200 340/320 380 400/360 230/190 350/320 400/360 450
Cage length (mm) 1,600 2,200 2,800 3,400 2,200 2,800 3,400 3,400
Approx. weight (mt) 5 12 15 18 10 14 18 20
